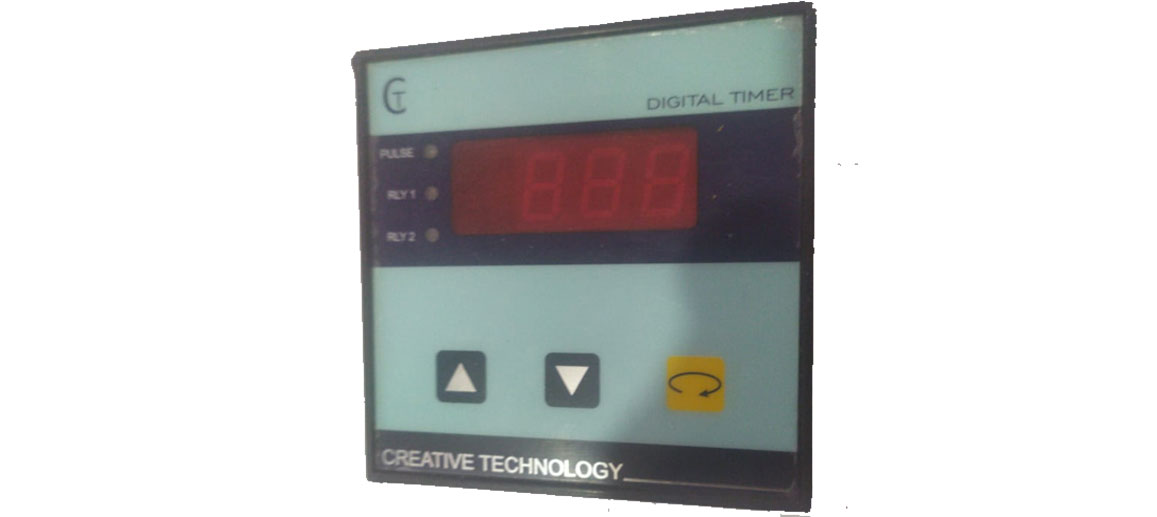

Specifications
- Supply – 230 V, 50 Hz (+/- 15% )
- Display 4 digit 7 segment LED display
- Mounting – Panel Mounting
- Size – 96mm x 96mm
- Keypad – Increment, degrement and function
Working
With the help of the keypad we will set On time and Off time as per value output relay will be on and off respectively up to power-on condition. When even power cut in between operations then the initial set value will be in action. We can set starting from 1 minute up to 999 minutes and 1 second to 999 seconds for On-time and Off time
