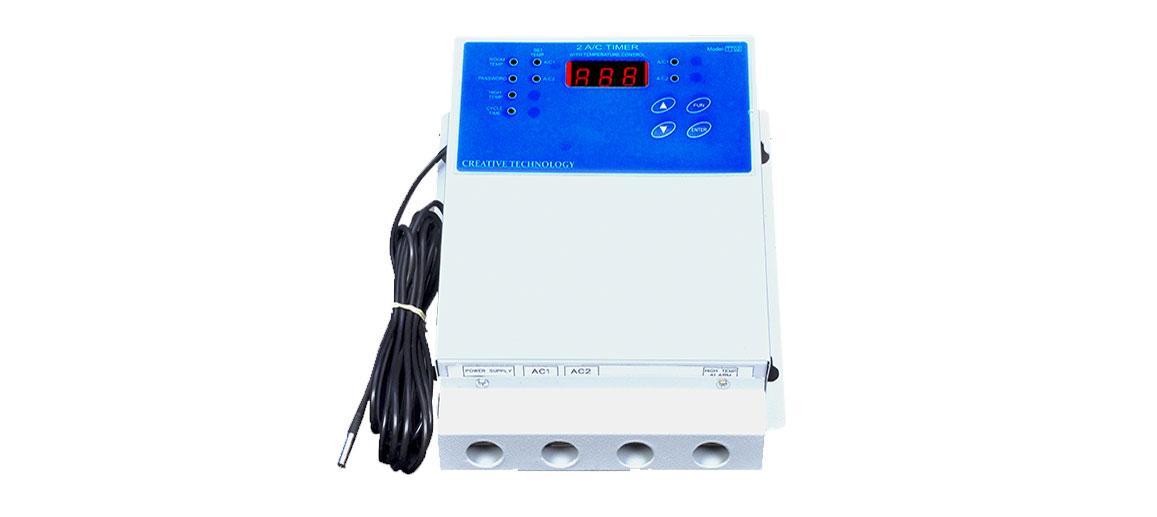

Features
- It controls up to 2 Air Conditioners
- Separate phase supply for each AC
- 3 Digit 7 Segment LED Display
- Precise temperature sensing by Accurate Temperature Sensor
- Time-sharing for the compressor to share the load equally
- Separate alarm relay contact for high temperature
- Password protection
- Various set points are site suitable
Specifications
- Supply Voltage 230 volts, 50 Hz (+/- 15%)
- Contact Ratings- 30 amp at 230 volts for compressor and 5 amp at 230 volts for alarm
- Temperature sensor- NTC 10K @25C sensor cable length 2.75 Mtr.
- Temperature sensing range .1°C to 50°C
- Resolution – .1°C
Indication
- Healthy Condition
- Supply On for AC
- Room High Temperature
Keypad
- SET- To enter into function mode/ to view next parameter set point
- UP- To increment the value of set point
- Down – To decrement the value of set point
- Enter – To come out of the function mode and accept the password and other values if changed
Mounting
- Wall Mounting
Size
215X190X70 MM
Terminal Layout
- Supply 230 Volt AC – L|N|E
- AC1 – C|NO
- AC2 – C|NO
- High-Temperature Alarm – C|NO
