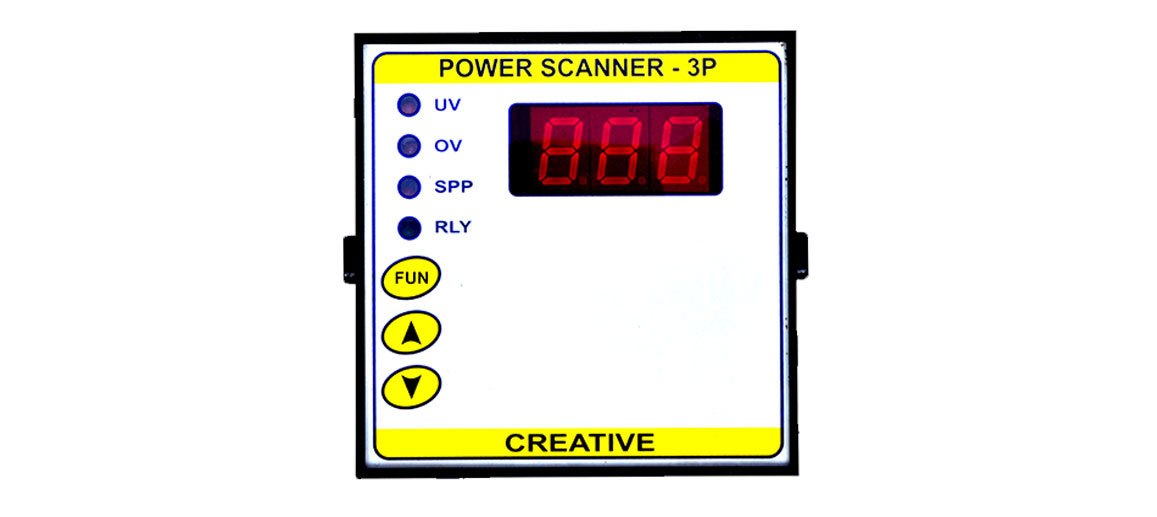

Specifications
- Supply – 415 V AC,50 Hz (P-P), additional auxiliary supply not required.
- Indication – Under Voltage, Over Voltage, Relay On, Single phasing
- Mounting – Door Mounting and Din Rail
- Display – 3 digits 7 segments LED
- Operating Temperature – 5°C to 60°C
- Operating Humidity – 10% – 95%
Dimensions
Din Rail – 55 X 65 X 125 mm
Door Mounting – 96 X 96 X 80 mm
Output Contacts – 2 number SPDT (C NO NC)
Feature
- All parameters like low voltage, high voltage, unbalance voltage are site settable
- On delay and trip, delay are site settable
- Micro controller based technology hence most reliable and precise
- Parameter values and fault message display
